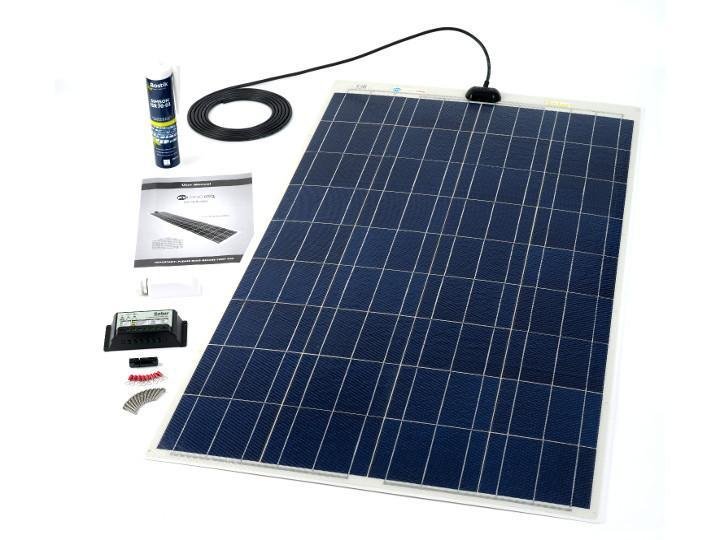

PV LOGIC FLEXI SOLAR PANEL - 80W

From 10wp to 80wp, PV logic Flexi is well suyited for use where a super robust, low profile and lightweight panel is needed, or the substrate to which the panel will be fixed has a sligtht curve. The Flexi offers the following advantages:

SELF- HEALING TOP SURFACE

The ETFE top layer gives you the PPV Logic Flexi extra resillence in really tough conditions. ETFE has a memory effect or self-healing capacity in the even the panel comes into contact with branches etc, thus ensuring any slight abrasions are healed within a few hours. The Flexi range can even be walked on with soft deck shoes. During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, pariculary useful if the panel is fitted top a boat deck.

COMPLETELY WATERPROOF

Each panel is assembled to ensure complete encapsulation. This ensures the 6 layer heavy duty laminate the solar cell cicuit from extreme conditions. The junction box is also injected with special silicon, guarnteeing no water ingress.

CELLS PROTECTED FROM HOT SPOTS

Where used on a camper partial shading of a solar panel is typical. In these circumstances, heat build- up and damaging hot spots can occur leading to a significantly reduced life cycle to the panel. The larger sola panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

SUPERIOR DESIGN

There are no square edges on a PV Logic Flexi! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

EASY FIX

The Flexi range can be bonded to flat or single curved surfaces such as painted aluminium, metal GRP and fibreglass using Simson. The aluminium layer is also pre-drilled with 4.5mm holdes should the panel need to be mechanically fixed as well as or instead of bonding.

SPECIFICATIONS:

- Size 885 x 665 x 3mm

- Weight 3.75kg

- Pmax- 80W

- VMP - 18.0v

- IMP - 4.45A

- VOC - 21.6 V

- ISC - 4.82A

**Please contact us for Price and Availability**
